Industrial Digital Twin Platform
DTDconvertor Integrating Various 3D Formats as
the Foundation of Digital Twin
DTDconvertor is a core component of the DTDesigner platform. It transforms data generated from various design tools into the proprietary 'dtdx' format. This format preserves the detail and richness of design data, including both geometric and attribute information. Through automated conversion, users can maintain a consistent data flow without manual intervention. The dtdx format maximizes data usability across different project phases and simplifies team collaboration, providing a robust foundation for additional data analysis and processing to address complex design requirements effectively.
This technology allows clients to save time and costs while achieving high-quality results.
play
Key Functions
  • Multi-Format Support : Conversion of various 3D file formats
  • Data Optimization : Compression and optimization of large 3D models
  • Automated Conversion Process : Bulk processing for large-scale file conversions
Applications
  • Manufacturing Design
    Data Integration
  • Construction and Infrastructure
    BIM Model Conversion
  • Plant Engineering
    Data Transformation
Core Advantages
  • Enhanced Compatibility
    Smooth data compatibility with various design tools
  • Automated Conversion
    Consistent data flow without manual intervention
  • Improved Collaboration
    Seamless information sharing across departments with a unified ‘dtdx’ format
  • High Quality
    Efficient data management, saving time and costs
  • Dedicated Format Conversion for DTDesigner
    Transforms objects and files into the ‘dtdx’ format, allowing opening, editing, and saving in DTDesigner, as well as in DTDsquare, DTDon, DTD builder & guide, and DTDAR. Experience lighter and faster design collaboration with DTDconvertor.
  • Conversion Process for DTDesigner Format

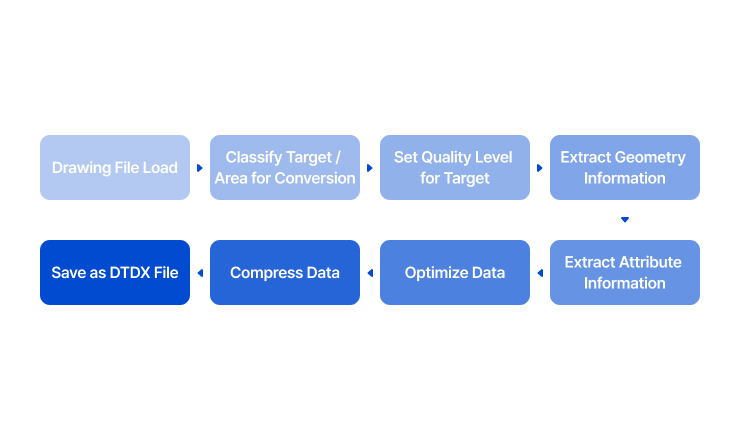

    Converts engineering CAD, BIM designs, and 3D model data (3D Mesh Data), performing file size optimization, attribute extraction, and 3D library generation, transforming them into the DTDesigner file format (dtdx).
  • DTDconvertor Server
    DTDBatch Functionality
    An automated program for converting files to the .dtdx format.
    It retrieves file information from the server, performs conversion, and registers the output files and information on the server. With scheduling capabilities, it runs at specified times or intervals and includes parallel processing for faster conversions.
    DTDBatch Conversion
    DTDBatch processes conversions differently based on drawing type.
    It uses specialized conversion programs (DTDExport) for Revit, Microstation, Navisworks, and neutral formats.
    Supported File Formats
    • Revit : rvt(project file), rfa(family file)
    • Navisworks : nwd, nwf, nwc
    • AutoCAD : dwg, dxf
    • CATIA : catpart, catproduct
    • Microstation : dgn
    • Inventor : ipt, iam, ipj
    • Siemens : jt
    • SketchUp : skp
    • SmartPlant3D : vue
    • Solidworkd : prt, sldprt
    • Neutral Formats : ifc, rvm, obj, fbx, gltf, glb, stp, stl, iges, etc.
  • DTDExport - Revit
    A dedicated dtdx conversion program for Revit that offers options for designating conversion targets, storage methods, extraction by category/family, detailed quality settings by classification, and attribute extraction methods.
  • DTDExport - Navisworks
    A Navisworks-specific dtdx conversion program that allows designation of conversion targets and scale settings, and performs optimization and compression. Supports conversion for all drawings loaded in Navisworks.
  • DTDExport - Microstation
    A Microstation-specific dtdx conversion program that allows target designation and performs optimization and compression.
  • DTDExport - Convert
    A dedicated dtdx conversion program for neutral formats, operating as a CLI-based tool with options for coordinate systems, height axis designation, and scale settings.
